Planetary Disperser Mixer
Double planetary mixer is an efficient mixing equipment, specially designed to handle the mixing of high viscosity and high density materials, widely used in chemical, pharmaceutical, food, energy, electronics, construction and other industries. The equipment adopts a unique planetary trajectory design to ensure that the material is fully mixed, with uniform dispersion, no dead Angle, flexible operation.
Description

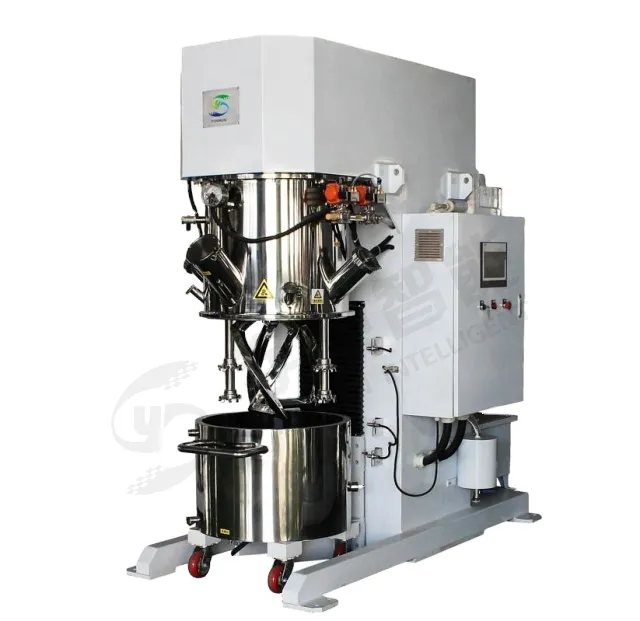

Planetary Disperser Mixer--Double Planetary Mixer
Double Planetary Mixer
As an efficient and multi-functional mixing equipment, the double planetary mixer can meet the needs of various industrial production. Its unique mixing method and wide applicability make it an ideal tool for mixing high viscosity and high density materials.
Product characteristic--Planetary Disperser Mixer
-
More Uniform Dispersion Can Be Achieved
Double planet high viscosity mixer in the mixing working state of the fluid track covers the entire tank, to achieve a full range of closed mixing, so that the material mixing uniform, efficient, no dead Angle, and good dispersion. It is suitable for the ultra-high viscosity mixing of 1000~100000MPa. s, and the solid content of the slurry is suitable for 30%-70% and 85%-100%. -
Mixing Paddle Material Upgrade
In order to achieve mixing from low viscosity to higher viscosity, Yushun's high viscosity mixer provides two optional materials: duplex stainless steel and SUS304. The effective torque in the solid stage ≧3Nm/cm2, which is more conducive to the uniform dispersion of dry powder mixing in the early stage, and the surface is sprayed with tungsten carbide hardened layer, which has more advantages in hardness, wear resistance and other properties. -

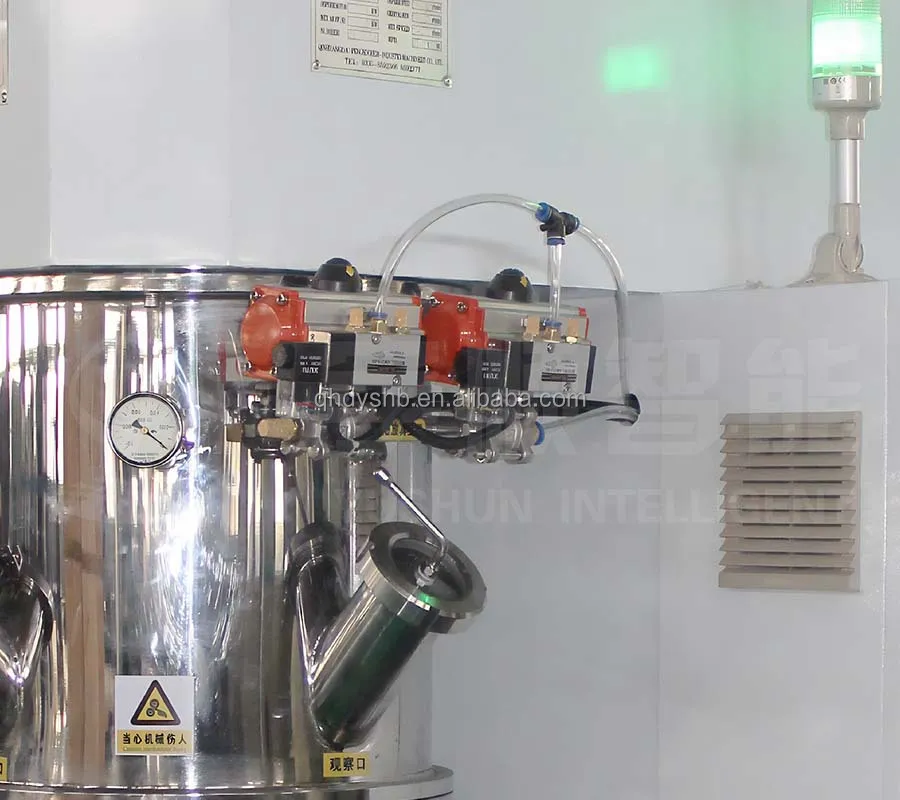

Better Sealing
The temperature control accuracy of the stirring tank is ±2℃, the mixing and stirring are double sealed, the static 12H vacuum leakage rate is less than 20%, and the sealing is better. The sandwich of the tank body is equipped with circulating hot and cold water baffle, which makes the temperature control of the material better and avoids changing the property of the material due to high temperature.
Multi shaft mixer
An industrial liquid mixer is a mechanical device used to evenly mix two or more materials, different viscosity of the material may require different types of mixing paddle.
Working Principle of Double Planetary Mixer

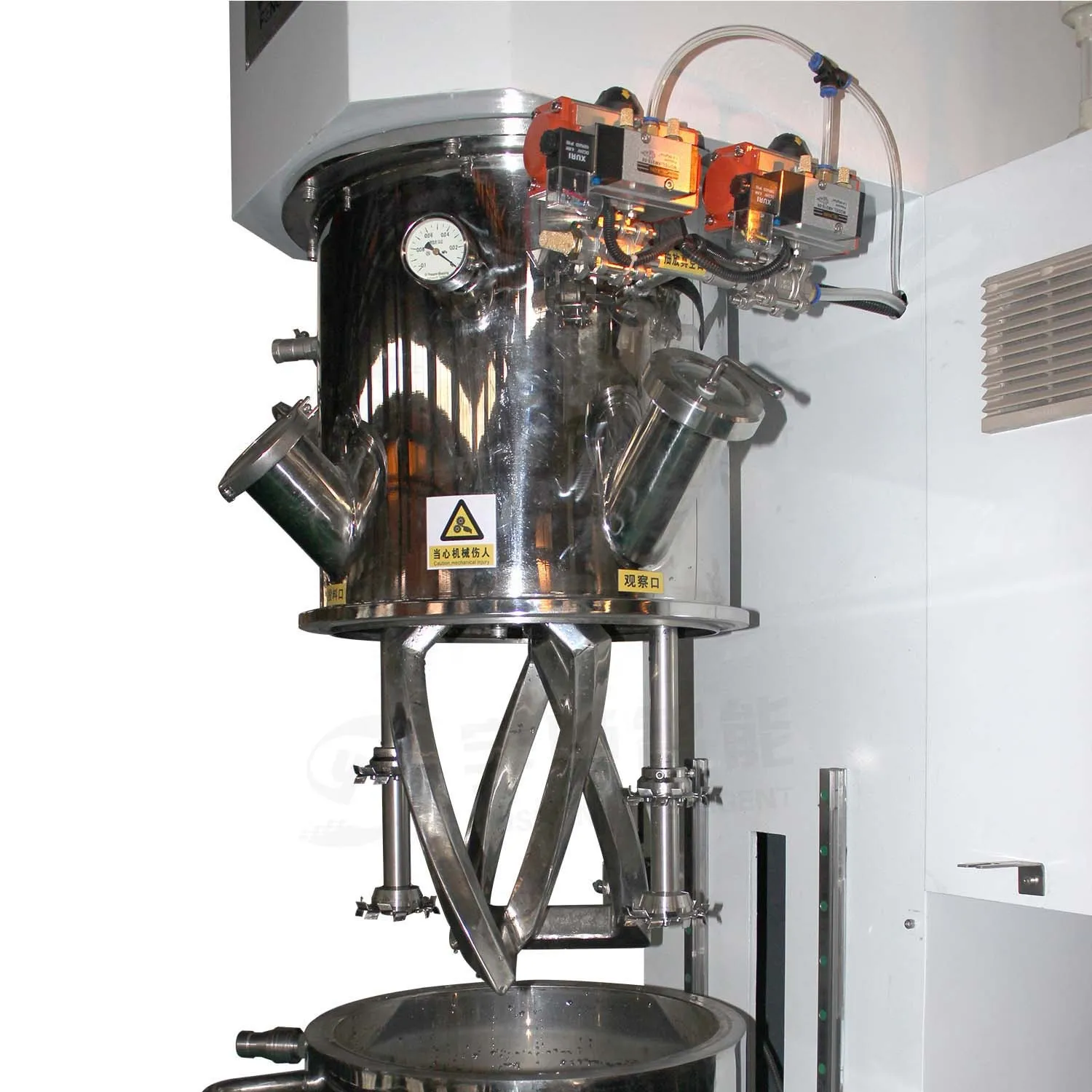

Dual-Motion Mechanism of the Double Planetary Mixer
The unit operates using combined orbital and rotational movements. As the mixing blades orbit along the container's inner perimeter, each blade also spins on its own centerline. This twin-action design creates strong shear forces and agitation, allowing materials to be blended quickly and evenly.
Orbital Function – Promotes bulk movement of the entire batch, avoiding material build-up in any single zone.
Spinning Function – Boosts local blending to guarantee full intermingling of various ingredients.
Complete Coverage Mixing
The blade shape closely matches the inner contour of the mixing vessel, removing any unmixed zones and achieving total batch homogeneity.
Key Features of the Double Planetary Mixer
High-Viscosity Material Processing Expertise
This double planetary mixer is purpose-built for substances with viscosities reaching several million centipoise-lithium battery pastes, sealants, and printing inks, for instance. Its strong agitation and even dispersion help maintain consistent material properties.
Vacuum and Thermal Regulation Features
A vacuum-tight seal system allows the unit to remove gases and prevent oxidation. The integrated thermal management module enables accurate heating or cooling, adapting to diverse process conditions.
Tailored Configuration Possibilities
Every element, including machine capacity, blade geometry, and mixing bowl design, can be adapted to the user's specific production needs. This flexibility guarantees smooth integration with various manufacturing lines.
