Dental Compound Filling Material Dispersing And Mixing Equipment

Dental Compound Filling Material Dispersing And Mixing Equipment

Vertical planetary mixer: Production capacity :0.5-1000 liters Material viscosity: less than 5 million cps Applications: High viscosity sealant, plastic, rubber, silicone rubber, dye, pigment, ink, food adhesive base, pharmaceutical, building coating, carbon, cellulose, neutral glass adhesive,...

Send Inquiry

Description

Vertical planetary mixer:

Double Kneader mixer-1

Production capacity :0.5-1000 liters

Material viscosity: less than 5 million cps

Applications: High viscosity sealant, plastic, rubber, silicone rubber, dye, pigment, ink, food adhesive base, pharmaceutical, building coating, carbon, cellulose, neutral glass adhesive, chewing gum, bubble gum, pulp, battery, resin, food and cosmetics, etc.

Applicable materials: solid-liquid and liquid-liquid phase dispersion and mixing, viscosity of less than 5 million CPS, solid content of less than 99% of a variety of fluid mixing;

Advantages:

1. clearance between the tank and the blade is 1mm.
2. Previous planetary mixer was impossible to make the particles smaller without damage, but this machine can make the particles
smaller with low rotation speed.
3. shape of the vessel cross-section is a gourd-shaped.
4. complete mixing and dispersion is possible only rotation.

5. Tough device with a simple structure.
6. powder raw materials suction is possible from the bottom while driving.
This device is effective as a high viscosity. This function is not in the other mixers
Powder deposition of tank lid inner surface eliminates.
7. The movement of the kneaded product will be increased by large blade.

8. scraping of the blade is not required. The blade shape eliminates the adhission of materiaks.
9. Contamination from the shaft seal does not occur because of the garbage plate

10. screw is directly with the top of the blade.
11.By raising the lid, the screw and blades are completely outside of the tank, so washability is improved

12.For a vacuum specification, airtightness is better.
13. Because strong one shaft without joint connection, hard kneading is possible.
14. Liquid can be diluted easily after kneading. At the same time, liquid can be injected while operating the device
15. Jacket can be attached to the blade as optional. This is impossible structure in a planetary mixer.

16.there is no projection in the tank as temperature sensor is integrated.
17.Product releasing method can be chosen in a wide variety styles.

18.The raw material can be inserted from screw on the top of the lid.

19. Screen touch PLC to control the machine easily.

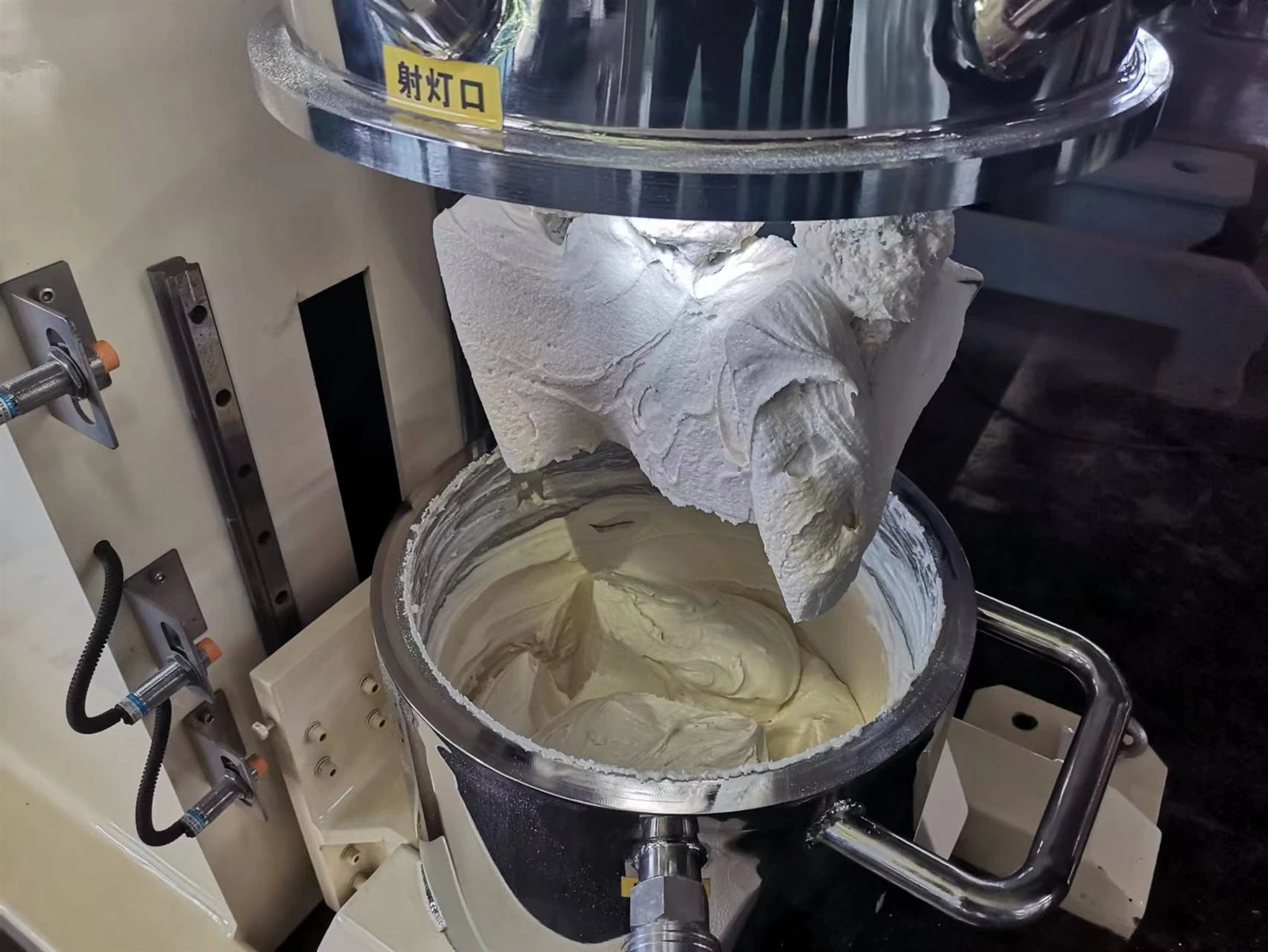

b4d0d4604d4fc577f6c783d20d8a888

Kinetic energy is transferred to the gearbox through the motor reducer, and the internal part of the gearbox transmits enough torque to the transmission shaft through the gear bite to drive the leaflet of the vertical blade and stir. Each hybrid component on the gear rotates at a different speed, with the whole rotating around the center line at a low speed.

The distance between the shaft and the surface is larger than the outside diameter of the blade. So the blades of the dough don't cause side effects. The blade of the dough rotates in the opposite direction. With the direction of rotation, the material continues to move from the side wall of the dough toward the center of the dough or vice versa. The ratio of the dough is 5:3. Other rotation speeds of the stirring knife rotating in the opposite direction will produce high pressures, achieving dense mixing.
