Lithium Battery Paste Premix Tank

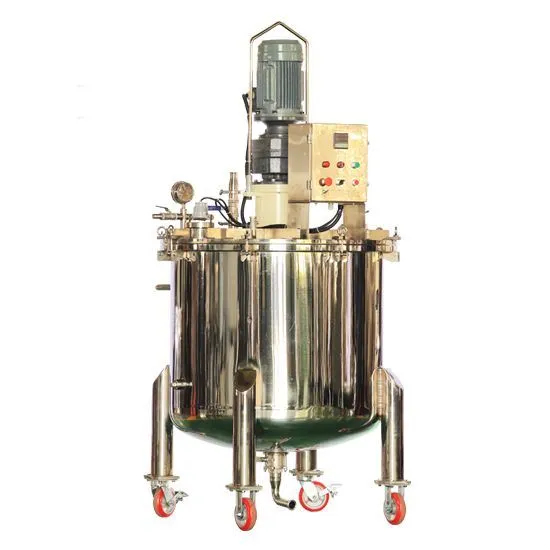

Lithium Battery Paste Premix Tank (100L-1000L)

With the widespread application of lithium-ion batteries, people have put forward higher requirements for the consistency of lithium-ion batteries. In the manufacturing process of lithium-ion batteries, an important factor that determines the consistency of the battery is the consistency of the pole pieces. The performance is the key to controlling the consistency of the pole piece. Obtain the qualified slurry by mixing the slurry. The slurry obtained by the mixing needs to be sent to the coating machine for coating through the transfer storage system. The existing transfer storage system: the feed pump obtains the slurry from the transfer tank and transports it through the filter. To the coating machine head, this system slurry will form new agglomerations during the transportation process, which reduces the stability of the slurry. The slurry sent to the coating machine head contains impurities, and the pressure fluctuates greatly during the slurry transportation process. Thereby affecting the consistency of the coated pole piece.



In order to solve the problems of poor stability of the slurry supplied to the coating machine head, Yushun impurities and uncertain pressure, the present utility model proposes a lithium ion battery slurry transfer storage system.



Pengyi provides a power lithium-ion battery slurry circulating transfer tank. The slurry prepared by different pulping tanks or different batches of materials is uniformly mixed in the power lithium-ion battery slurry circulating transfer tank, which can effectively improve The consistency of the slurry prepared by different equipment of the slurry improves the stability between different batches of feeding, thereby improving the stability of lithium-ion battery products between batches, including the consistency of electrical properties such as capacity distribution and internal resistance distribution. Improving the consistency of lithium-ion batteries for electric vehicles is of great significance.



Manufacturing of Lithium battery positive pole sizes & negative pole sizes as well as other materials.it is used for the transfer, storage, mixing and twice defoaming of battery sizes, prevent the sizes from precipitation.



The Main Introduction Of Lithium Battery Paste Premix Tank



● Vacuum Seal and No Precipitation

● Slurry transfer tank is used for the transfer, storage, mixing and twice defoaming of battery sizes, prevent the sizes from precipitation.

● Turn on the mixing motor, avoid the precipitation of large density material;

● Fill nitrogen into the transfer tank, press transmission the material to coating machine; or transfer the material by pneumatic diaphragm pump;



Pengyi Intelligent is a manufacture in China, who has more than 25 years experience. If you would like to custom the production line of lithium battery, silicone sealant, paint industrial, pls kindly make a contact.
