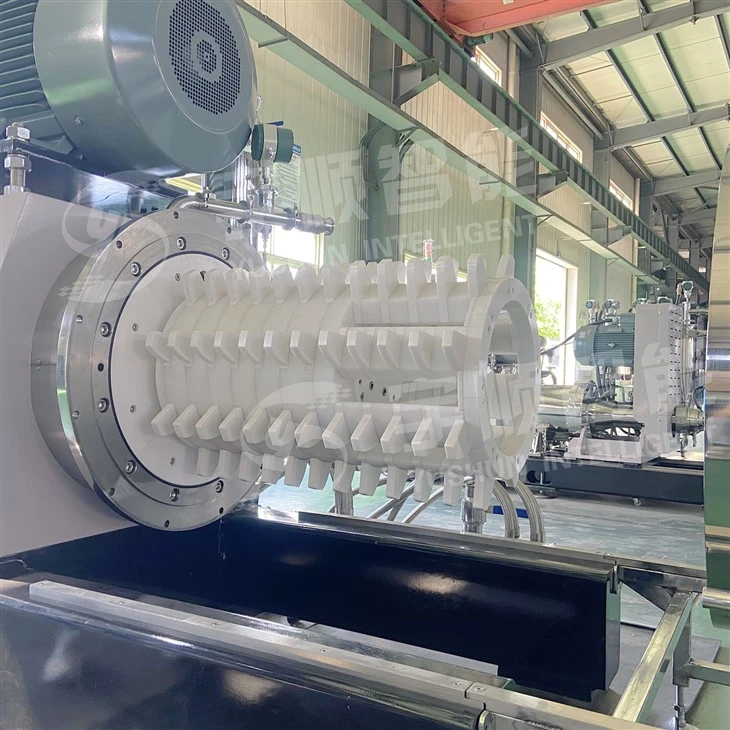

Nano Milling Machine

Nano Grinding Machine Pigment Slurry Paint Industry Horizontal Beads Mill Horizontal Sand Mill

Send Inquiry

Description

Products Description

This mill adopts advanced grinding technology to grind products to super fineness, high grinding efficiency, large production capacity, low energy consumption, etc.

This nano grinding mill is satisfied for lithium battery material, use for high technology industry.

191

Main Feature

1. High efficiency and adaptability: Disc sander is considered to be one of the most widely used and efficient grinding equipment. It is suitable for large flow, medium and high viscosity water, solvent ultrafine grinding and dispersion, widely used in automotive paint, industrial paint, metal paint, printing ink, electronic ink, pigment, dye and color paste and other industries.
2. Structure and design features:
- Built-in motor: very low noise during operation.
- Large capacity cone grinding chamber: designed for dispersion and ultrafine grinding of large quantities of medium and high viscosity products.
- Movement of the grinding bead: The grinding bead in the cone cavity changes with the reflection Angle, which strengthens the round-trip movement of the grinding bead and makes the grinding fineness more uniform.
- Cooling system: stator, rotor and front end plate cooling, suitable for temperature sensitive materials.
- Special separation structure: allows the use of smaller grinding beads.
3. Operation and maintenance:
- Easy to clean and change color: suitable for continuous production or mass production, equipment cleaning and maintenance is convenient.
- Full range electrical automatic protection system: ensure safe operation.
- Pressure automatic protection device: keep the pressure in the grinding chamber stable.
4. High-performance materials:
- High wear-resistant material: The parts in the grinding chamber and the material contact are made of special high-wear-resistant material to improve the service life of the equipment.
- Zero metal pollution: high-quality ceramics and PU materials are used as grinding barrels and internal components to ensure that the grinding white does not change color.
5. Customized design: The machine can be designed according to different materials, such as wear-resistant steel, polymer polyurethane, ceramics, etc., to meet the special needs of different industries.
