Lithium Battery Materials Production Line Double Planetary Mixing Machine

Lithium Battery Materials Production Line Double Planetary Mixing Machine

We need to know the material characters as below:

1. Material

2. Viscosity and solid content

3. temperature request(heating or cooling)

4. Vacuum or not

5. Explosion-proof or not

6. Capacity or output request

7. other related equipment needs

8. other special request

All details must be confirmed in advance, because in this way our engineers can make the most perfect technical parameters and quotation.

Different mixers have different applicable materials and scenarios. Our technical engineers will usually give a rough judgment based on previous experience, referring to the type of material, viscosity and solid content.

During the running of double planetary Vacuum power mixer, Two parallel mixing paddles run in accord with the set fixed rotation ratio, high speed rotating on its own axis at the same time of orbital revolution. There is scraper runs together with paddles' orbital revolution in the mixing tank, which moves the material to the paddles from tank wall. To archive the different shearing. The direction of both orbital revolution and rotating on its own axis can before ward and reversal: Another two high speed dispersing discs with separate driving device run in the mixing tank together with the orbital revolution, high speed dispersing, emulsification, The speed of high speed dispersing discis adjusted by frequency inverter, The speed can be set in accord with demand. The material can be completely well distributed emulsifving under this mixing mode,suitable for the dispersing andmixing of solid-solid. solid-liquid and liquid-liquid material.

Lithium Battery Materials Production Line Double Planetary Mixing Machine

1.High line speed: The line speed can reach to 25m/s, shorten the dispersing time. The particle size of battery slurry is small and high uniformity, solve the problem of polymerization;
2.It adopts SKF Sweden import angular contact ball bearing.the vertical and horizontal loading is bigger than the deep groove ball bearing. the carry capacity ismuch higher,and bear higher rotating speed, large increase the mixing speed and using life( The using life is more than 3 years under 21m/s and continuous 24hrworking);
3.0-0 assembling: precision assemble, the process tolerance of core parts is less than 30um (mixing shafts, dispersing shafts, and each hole).thus ensure theconcentricity and flatness, archive the 0-0 assembling of core parts. The running is more stable , the noisy outside I m rang is lower than 70 db(A);
4.High tightness, no air leakiness and oil leakiness: 2 sets of mechanical seal plus soft.hard seals ete.the planetary
transmission box adopts complete sealstructure, New design of bearing position, reasonable distribution of the bearing limit, reduce the wearing of bearing. the non load vacuum keeps above -0.092in 24hours, ensure that no air leakiness and oil leakiness during the mixing
5.The gap between tank and paddles: paddles to paddles,paddles to tank wall,paddles to tank bottom, the gap is small, scraper design under the mixing paddles,high roundness inner the tank. The deviation is less than 0.2mm;
6.Large torsion output: precision casting mixing paddles SS316 stainless steel (adopts special steel for machines bigger than 650L, the material can restore itselfif there is micro deformation, the mixing paddles won't deform under long time big torque running), the torque output is simulation calculated by computer.High strength, suitable for high viscosity, high solid content Positive and negative pole slurry of Lithium battery (Lithium iron phosphate, ternary, ternary highnickel, Potassium manganate, Lithium Cobaltate etc) suitable for different process technolog.

1. Engineering adhesives: RTV silicon rubbersilicon rubber for construction( silicone sealant,Acid glass adhesive),silicon rubber for mechanics,electronic polyurethane-double component polyurethane sealant, single component polyurethane sealant, glass sealant, organic sealant;
2. Coatings: Decorative coatings,Anu-corrosion coatings, electric conduction coatings, Anti-rust coatings, high temperature resistance coatings, temperature-sensitive coatings, heat-insulating coatings, titanium pigment;
3. Ink:Silicone plastic button ink, modified plastic ink,metallic glass inks, shoe material ink, ABS ink, PU ink, UV ink,ink
additives, pigment ink, special ink for silica gel;
4. New Energy: Fuel cells, power battery, polymer lithium ion battery (LIP), button battery, lithium iron phosphate battery, battery for electrombile, lithium powerbattery,nickel metal hydride battery,mercury-free alkalinc zinc-manganese battery,lithium(lithium ion) plastic battery, electrochemical energy storage supercapacitors,lithium ion battery slurry;
5. Electronic( electric slurry paste): Solder paste, lead-solder paste, lead-free solder paste, solder paste, dielectric paste, resistance paste, conductor paste, solderflux, cleaning agent, soft magnetic material, hydromagnetic material, clectronic electrode paste, ceramic paste, magnetic material, electronic coating, electronicadhesives, electronic and electrical parts grouting glue, hot melt glue;
6. Biopolymer gels, medical couplers, ointments, toothpaste, dental products;
7. Food: Chocolate, gum, maltose, jam, pcanut butter, condiment
8. Others: Fine Chemicals, new chemicals, polymer materials, Kaolin, low, medium and high viscosity materials (Liquid-Liquid, Liquid-Solid)..…

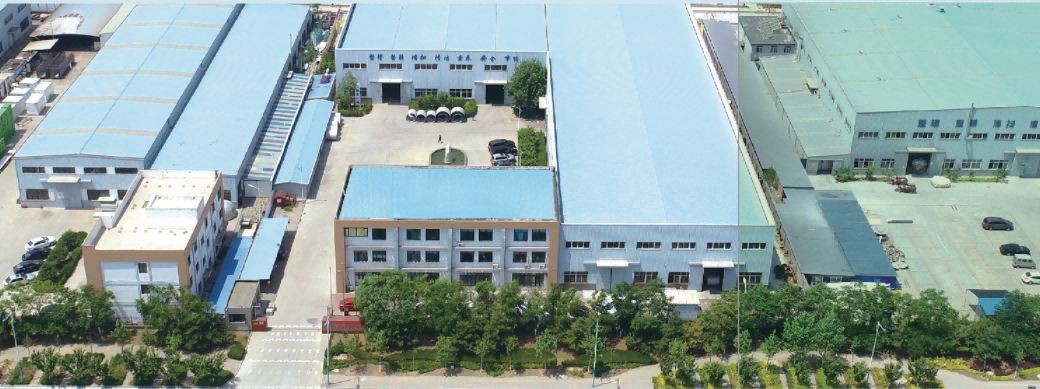

Pengyi Intelligent Technology Co., Ltd. is located in the Qinhuangdao Economic and Technological Development Zone on the beautiful coast of Bohai Sea. It is a professional manufacturer with lithium automation equipment as its core, and it is a modern enterprise integrating scientific research, production and operation.

Over the years, we have been leading the same industry with product technology technology content, stable and reliable product quality. The company has a group of high-quality professional talents and a capable team of employees. It is based on strong technical strength, continuously improves product performance and core technologies, resolves pain points in the industry, reduces costs and expands the market, and customizes various lithium batteries for customers. Automation equipment complete production line.

The company's products have been exported to the United States, Russia, India, Australia, Egypt, Sri Lanka, Ukraine, Thailand, Brazil, Malaysia, Vietnam and other countries, with its excellent quality and good service, has been widely recognized by domestic and foreign customers.
