Ganty Type Lithium Battery Slurry Mixing Machine

The double planetary power mixer is a highly efficient mixing equipment that integrates dispersion, stirring and mixing without dead spots. The double planetary power mixer has two motors. The low-speed mixing component adopts planetary gear transmission. The mixing paddle rotates while revolving, so that the material moves up and down and around, so as to achieve the ideal mixing effect in a short time and high-speed dispersion. The components revolve together with the planet carrier and rotate at high speed at the same time, so that the materials are subjected to strong shearing and dispersion mixing, and the effect is several times that of ordinary mixers. The dispersing parts are divided into single dispersing shaft and double dispersing circle. Customers can choose according to their needs. The kettle body adopts a special double mechanical seal structure, which can be vacuumed and has a good effect of degassing air bubbles. The cylinder jacket can be heated and cooled according to user needs. The discharging method is a pressing type, the equipment cylinder head can be hydraulically lifted and the cylinder body can be moved freely, and the operation is very simple.

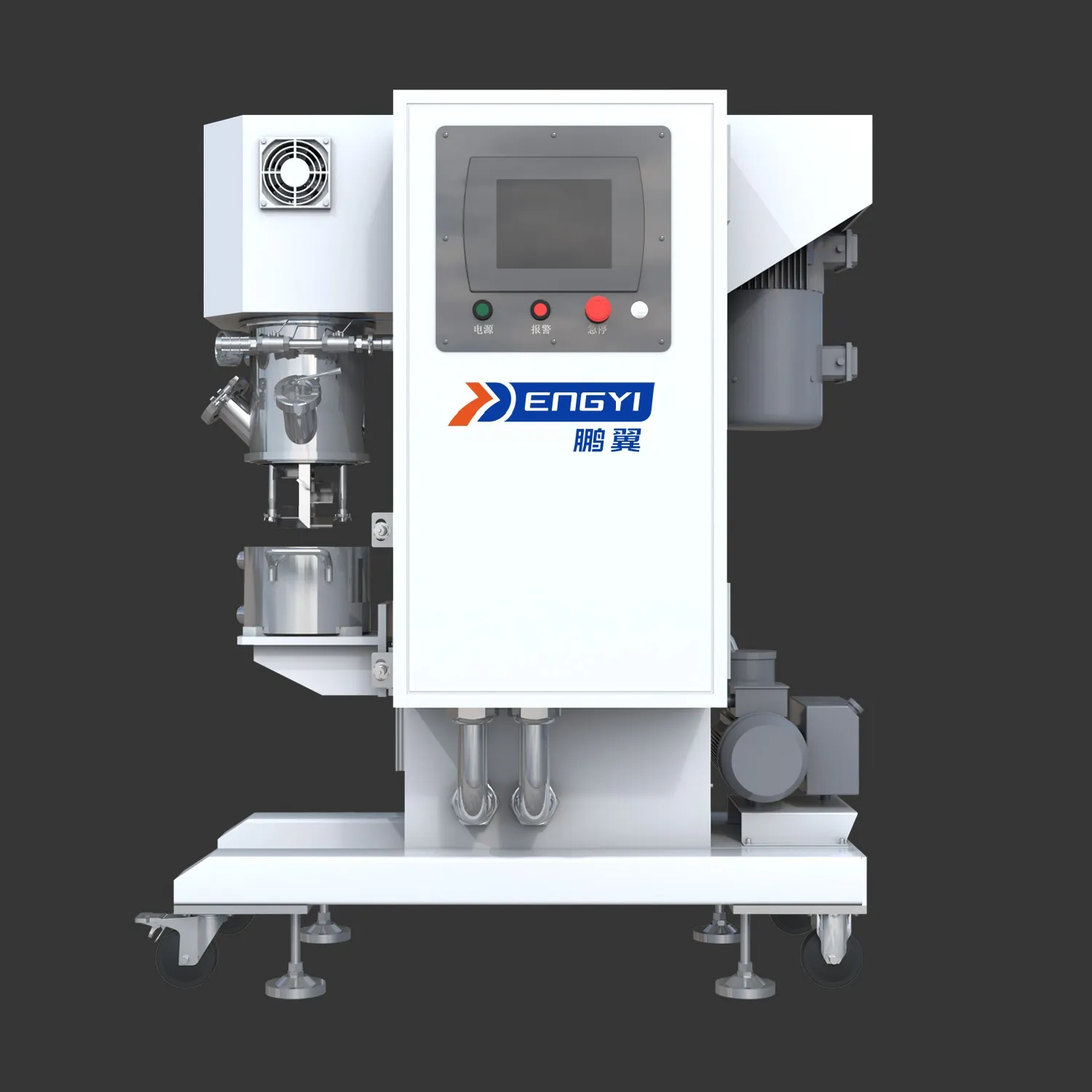

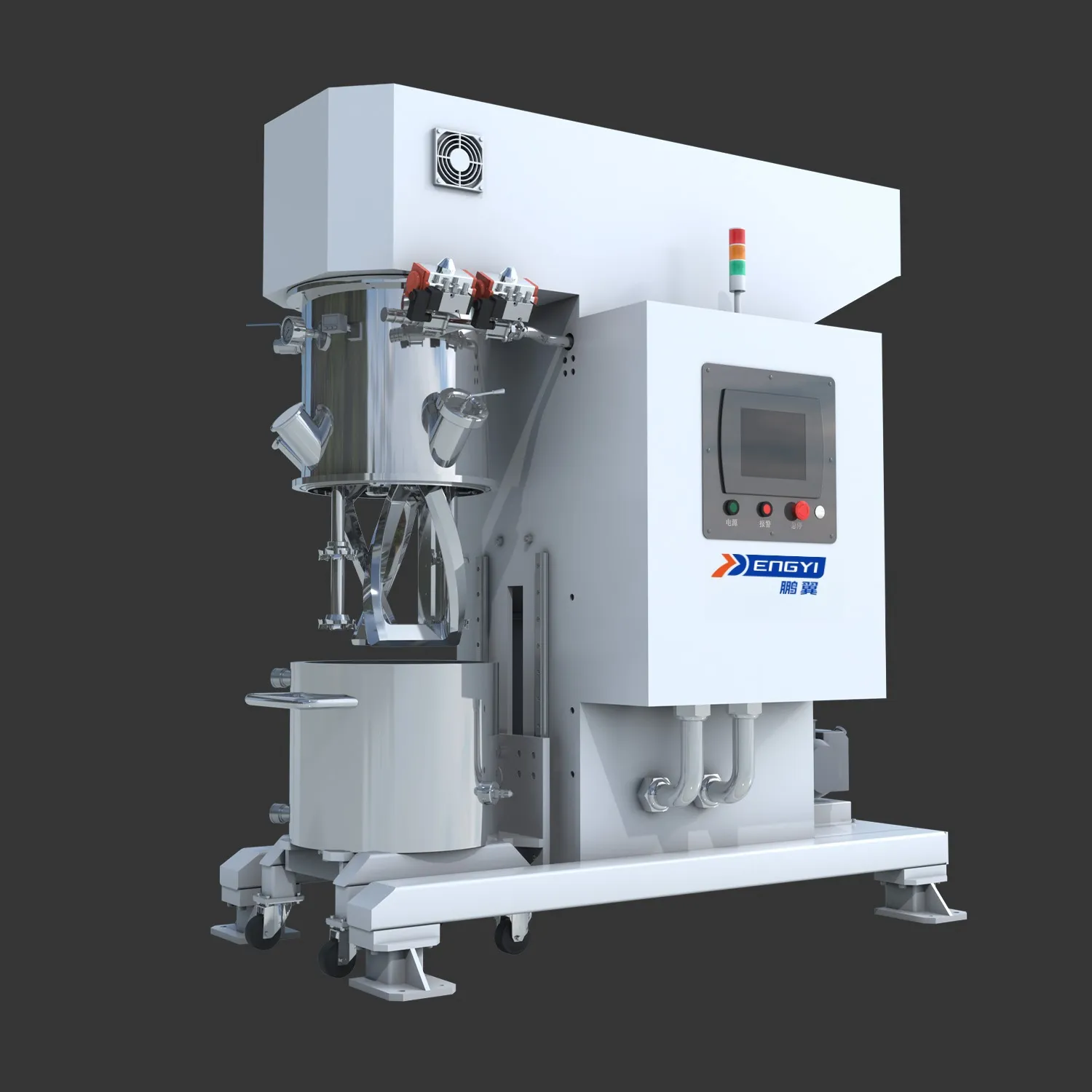

Single-arm lithium battery slurry mixer (2L/5L/10L/15L/30L/60L/100L/200L)

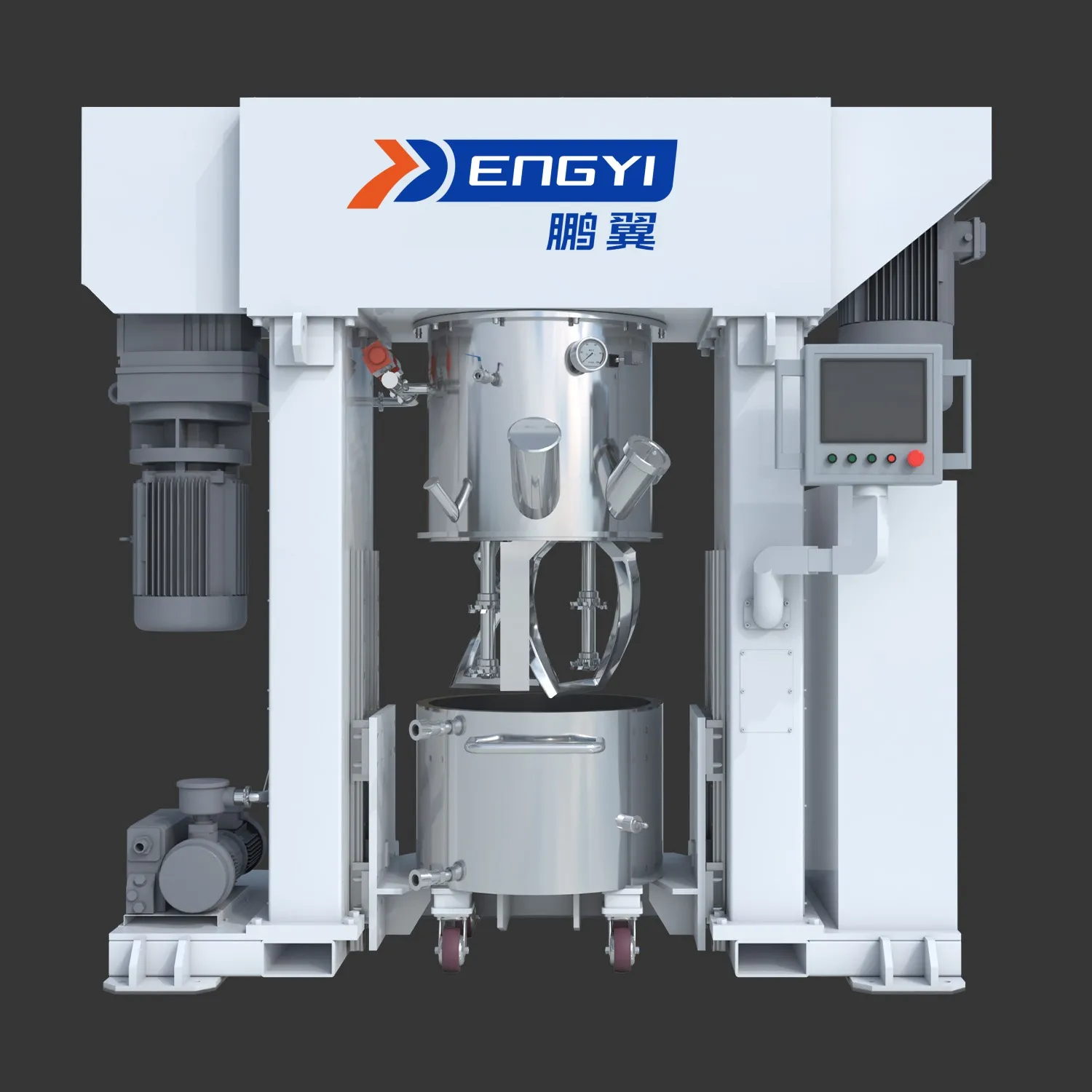

Gantry type lithium battery slurry mixing machine(300L/500L/650L/1000L)

Advantages

1) Reliable sealed tank can be mixed in vacuum environment.

2) The tank with jacket can meet the heating and cooling needs of input oil or water.

3) The inner tank can be replaced, and the precision craftsmanship makes it easy to clean.

4) The axis movement performs orbit revolution and axial rotation at the same time, which allows the materials to be mixed uniformly.

5) The orbit revolution and the axial speed are both controlled by the converter.

6) The rotating system is equipped with a scraper to scrape the material on the tank clean.

7) The upper body of the machine or the oil tank is lifted and lowered by hydraulic power, which is easy to replace the mixing tank.

8) The lithium battery slurry mixer has both low-speed mixing and high-speed dispersion; it also only performs low-speed mixing according to your requirements.

9) Both of the wet parts of machine and the tank are made of SS304/ SS316.

10) The temperature probe on the planetary disc can directly test the material.
