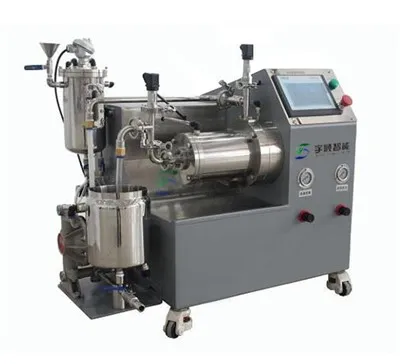

Lab Bead Mill
The laboratory sander is a highly efficient wet grinding machine designed for small batch experiments and process development for the fine dispersion of solid particles in liquids. By applying strong shear force and impact force to the material through the high-speed movement of the grinding medium, the particle size distribution at the micron or even nanometer level can be achieved. The laboratory sand mill is compact and easy to operate, and is widely used in the research and development and small-scale production of paint, ink, electronic materials, cosmetics, medicine, chemical and other fields.
Description
Products Description
The lab sand mill is a device designed for the grinding and dispersion of small batches of materials, often used in laboratory research and development and small-scale production. Lab bead mill core role is to apply shear, collision and friction forces to the material through a high-speed rotating grinding medium (such as zirconium beads), so as to achieve ultra-refinement and uniform dispersion.
Small batch experiment: suitable for research and development and small-scale production, easy to test different formulations.
Efficient grinding: ultrafine particle dispersion can be achieved, and the particle size can be up to nanometers.
Strong adjustability: can control the speed, grinding time, media filling amount and other parameters to meet different experimental needs.
Compact structure: small size, easy to operate, suitable for laboratory environment.
Various materials: stainless steel, ceramics, silicon carbide, etc. are optional for contact materials to prevent pollution.
Application Scenario
Specification
|
Model (L) |
BSM-0.5 | BSM-1 | BSM-2 | BSM-10 |
|
Effective Volume (L) |
0.5 | 1 | 2 | 10 |
|
Motor Power (KW) |
4 | 4 | 7.5 | 18.5-22 |
|
Media Diameter (mm) |
0.3-0.8 | 0.3-0.8 | 0.3-1.0 | 0.3-1.2 |
|
Batch Capacity (L) |
2-20 | 2-30 | 10-100 | 20-150 |
|
Flow Rate (kg/h) |
15-100 | 15-100 | 200-500 | 200-800 |
|
Dimension (mm)/L |
900 | 900 | 1150 | 1200 |
|
Dimension (mm)/W |
700 | 700 | 1110 | 1100 |
|
Dimension (mm)/H |
1000 | 1000 | 1250 | 1600 |
|
Weight (kg) |
160 | 165 | 350 | 960 |
Our Company
Qinghuangdao Pengyi Intelligent Technology Co., LTD., was founded in 1995, concentrates on the equipment of wet grinding, dispersing, mixing and production line with the high level of intelligent system. Pengyi offers the services ODM and OEM, with the professional departments which includes R&D, manufacture and marketing. Currently, Pengyi is one of the top manufactures in the Chinese industry of grinding, mixing with the years development and accumulation.
Adhering to the principle of "quality guaranteed,reliable service,customer satisfaction", the company firmly pursues technological innovation in the industry with the support of technical research and development strength, quickly responds to the needs of customers in the market,explores diversified markets, and wholeheartedly provides intimate service for customers.
Pengyi is looking forward to becoming your partner!
FAQ
There are many kinds of devices on the website. What are they used for?
1) Dispersion mixing equipment for solid and liquid high viscosity slurry, suitable for coating, adhesive, new energy (lithium
battery slurry), rocket propellant and other industries;
2) Equipment for ultrafine dispersion grinding and crushing of materials, used for grinding new materials such as
coatings,paints,inks, pharmaceutical preparations, lithium battery anode and cathode materials, ceramic materials, etc.
3) Other related equipment for coating, adhesive, lithium battery slurry production line.
How to choose the right mixing machine for your material?
Please describe the information of your material, including the name, viscosity, solid content, additives, the purpose to be
achieved and the state of the material. Our technicians will recommend the suitable mixer based on this information.
Your product details page does not have the type of paddle I want?
We have a strong technical team that can customize the mixing paddle you want according to your requirements.
Do double planets have vacuum pumps?
The double planet experimental mixer (2L-30L) will be equipped with a vacuum pump, and the production mixer larger than 30L will not be equipped with a vacuum pump, because we default that the production workshop will have a vacuum source, if we need to bring a vacuum pump, please inform us in advance.
Can double planets heat/cool materials?
The barrel of the double-planet mixer is jacketed, and water or oil can be added to heat or cool the material.
How to choose the right type of grinding machine for your material?
Please tell us the material you need to make, feed fineness, discharge fineness, temperature requirements, capacity
requirements,we will help you recommend the matching model and the size of the grinding medium.
Do our materials contain flammable and explosive substances?
We can do motor explosion-proof (electrical cabinet remote control non-explosion-proof) and the whole machine explosion-proof, to ensure safe production.
How to install and debug the equipment when it arrives at our factory?
Most of our equipment is the whole machine directly transported, with the opportunity to come with the manual and the circuit manual, as long as the circuit manual is connected to the power can be turned on, and then according to the manual can be operated and used, if special treatment is required, our engineers will be able to provide remote video guidance.
