Bead Mill For Paint
Product Description Dual Power Centrifugal Sand Mill Dual Power Centrifugal Sand Mill is an efficient and precise wet grinding and dispersing equipment, using a unique dual power drive technology, which can fine and disperse a variety of high viscosity and high solid content materials in a short...
Description

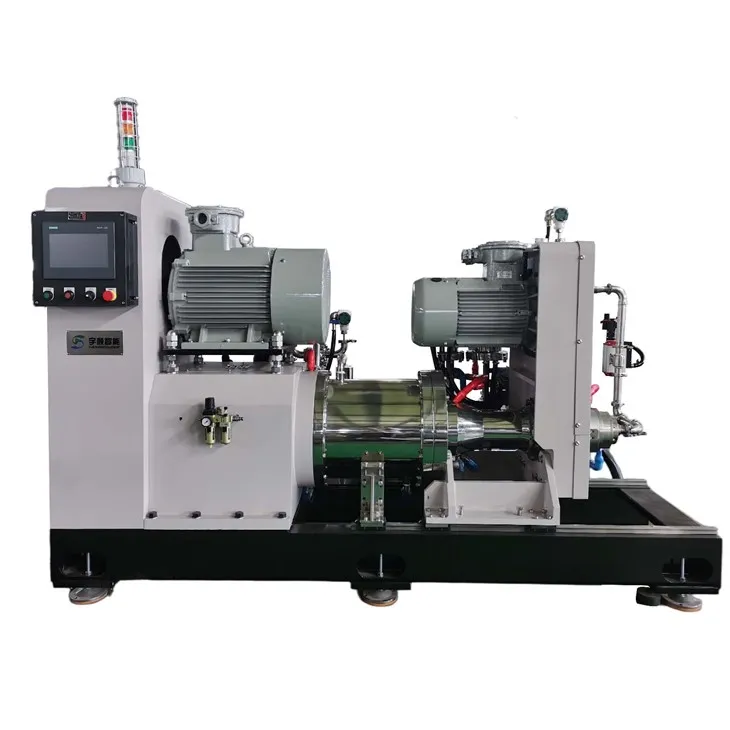

Bead Mill For Paint--Dual Power Centrifugal Sand Mill
| Media Diameter：0.05-2.0mm | Suitable: Particle nano ultrafine grinding |
| Outer Grinding Chamber: A3/304 | Inner Grinding Chamber: Polyurethane/Zirconia/Alloy Steel |

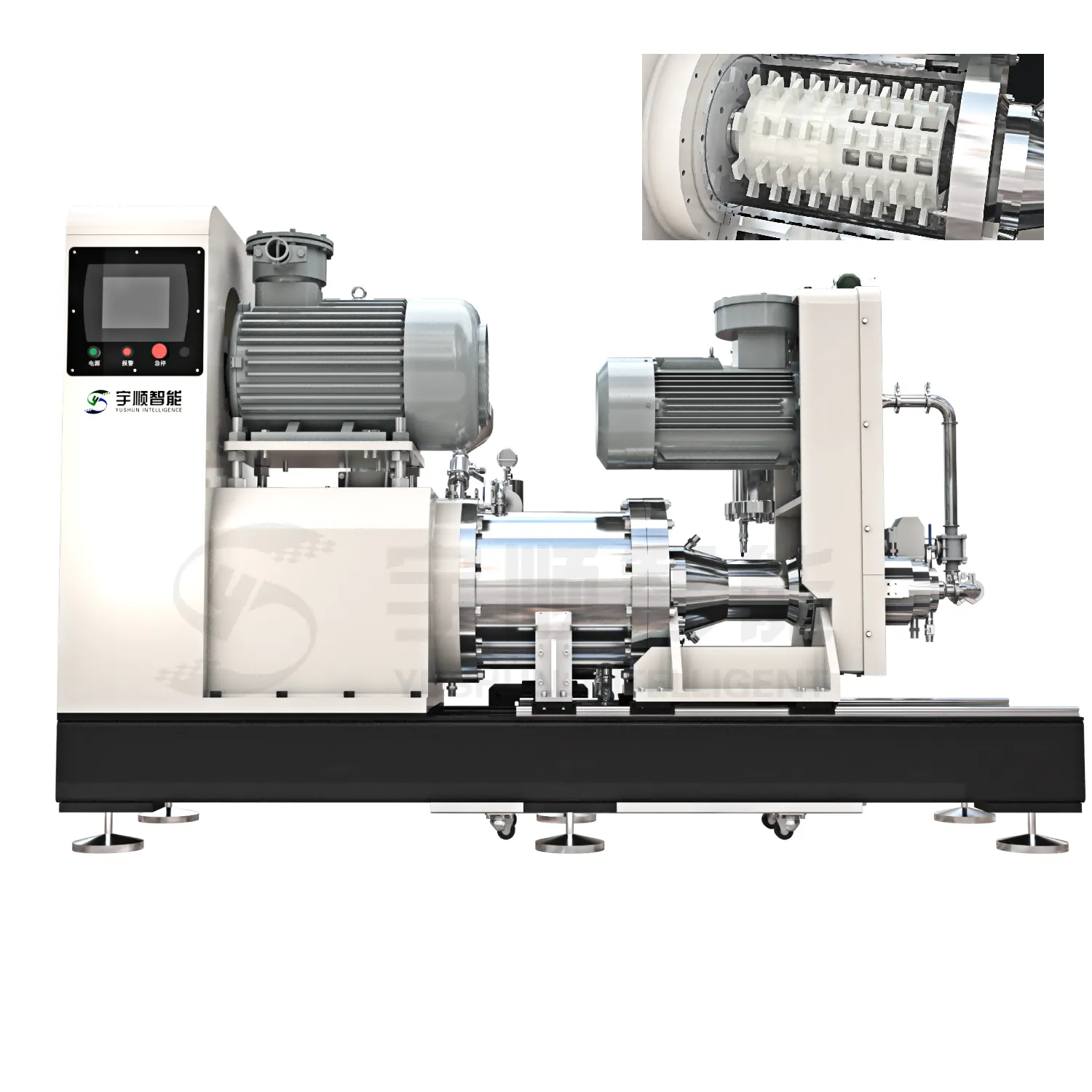

Dual Power Centrifugal Sand Mill
The Pengyi Intelligent Dual-Power Nano Centrifugal Grinding Mill is a "star product" specifically designed for stable mass production in the ultra-fine nano field. Its core technology lies in achieving independent operation of material grinding and material separation. Unlike traditional sand mills, this equipment separates the dynamic separator from the grinding rotor and realizes independent control through their respective drive systems. The grinding rotor is responsible for efficient grinding of the materials, while the dynamic separator precisely separates qualified particles according to the preset fineness. The two work collaboratively without interfering with each other, making the grinding process more refined and controllable. This breakthrough design has solved the technical bottlenecks encountered in the transition from micrometer to nanometer levels in traditional equipment.
Product characteristics--Bead Mill For Paint
-
The design of the dual-power nano-centrifugal sand mill is in the form of a dynamic rotary centrifugal sedimentation and discharge system, which is in response to the demand for the crushing of micron and submicron particles to the nanometer level in recent years, and requires a stable narrow particle size. The distribution provides efficient production capacity; the principle is to separate the dynamic separator from the original grinding rotor, and realize the independent driving and control of the grinding rotor and the dynamic separator system through the independent drive device, so that the grinding fineness is finer and can support to use 0.05mm grinding media to run stably to ensure the stability of grinding.
-
The equipment adopts a dual-power design with separate driving for the main drive and the separator. The main drive is responsible for providing strong grinding power, while the separator is driven independently to achieve efficient separation of materials and grinding media. This design breaks the efficiency bottleneck of traditional equipment that integrates "grinding and separation". This design enables the materials in the grinding chamber to form a "circumferential vortex + radial impact" combined motion trajectory. Combined with 0.05mm micro grinding beads, the number of grinding contact points increases geometrically, which not only can quickly grind silicon particles to below 100nm, but also can completely disperse the agglomerates of silicon particles and carbon materials, achieving molecular-level uniform dispersion. At the same time, the centrifugal non-screen separation design uses centrifugal force to make the grinding media stay in the grinding chamber, while the materials are forced to flow out, completely solving the problem of material blockage and achieving continuous and stable production. It is suitable for the large-scale mass production requirements of silicon-carbon anode.
