Lithium iron phosphate rolls towards the nanometer level. How to achieve both large production capacity and extremely fine particle size? In-depth research on Shenyuan Pengyi's 1000L direct drive bead mill and the entire line solution

In today's new energy battery industry, with the sudden popularity of 4C ultra-fast charging batteries and high-density LFP, cathode material manufacturers are being forced into a "nanoscale" arms race. It is well known in the industry that grinding lithium iron phosphate (LFP) to a finer degree shortens the diffusion channels of lithium ions, thereby improving the fast charging performance and low-temperature performance of the battery. However, the harsh reality is that the finer the grinding, the lower the production capacity; and when pursuing high output, the particle size distribution is prone to getting out of control. Coupled with the "zero tolerance" for metal impurities, traditional sand mills often fall short in the face of LFP production lines with a capacity of tens of thousands of tons.

To break this deadlock, a fundamental rethinking of the equipment's underlying logic is needed. Today, we will take a deep dive into the 1000L direct drive bead mill and cathode material production line of Pengyi Intelligent, to see how it tackles the challenge of nanoscale grinding of LFP.

In the wet grinding process of lithium iron phosphate, the traditional belt-driven bead mill is the mainstream, but the mainstream doesn't necessarily mean the best. Belt transmission inherently has problems such as slipping, energy loss and speed limitation. When the material needs to be ground to a D50 smaller than 200nm or even finer, grinding zirconia beads requires extremely high kinetic energy to generate strong shearing and impact. At this time, the shortcomings of belt transmission are fully exposed.

The core breakthrough point of Pengyi Intelligent 1000L Direct Drive Bead Mill lies in the word "direct drive":

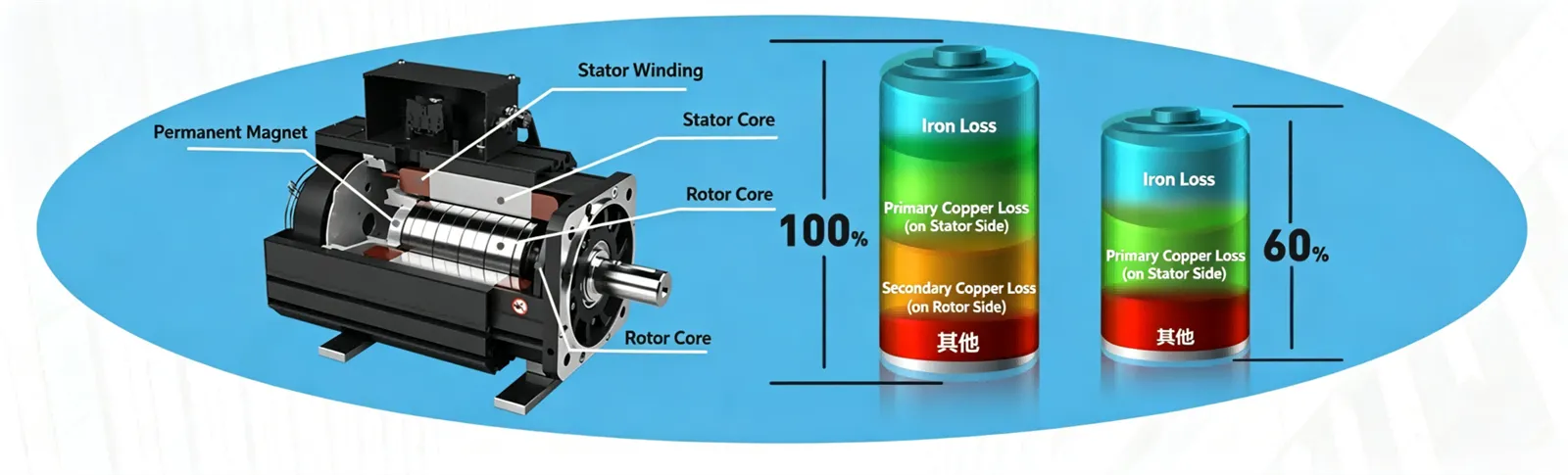

✨Each watt of electricity is transformed into "impact force": The motor is directly and rigidly connected to the main shaft, eliminating the slip and energy loss of belt transmission, and the transmission efficiency approaches 98%. This means that under the same power consumption, the direct drive technology can enable zirconium beads to obtain a greater kinetic energy output, and the grinding efficiency will soar.
✨Cure "grinding heat" and protect the true appearance of materials: Lithium iron phosphate is extremely sensitive to temperature. Local overheating not only causes the slurry to agglomerate but may even damage the crystal structure of the precursor. The direct drive eliminates the huge heat source of belt friction, combined with Yushun's large-flow cooling system, the temperature control is more precise, ensuring that the nano-sized particles do not aggregate during grinding.
✨Hardcore low-speed high-torque: The 1000L large cylinder body means a huge material load. The direct drive motor can still output stable and powerful torque at low speeds, making startup and operation smoother, effectively protecting the grinding rotor and separator, and extending the lifespan of wear-prone parts.

Many people have a stereotypical view of large-capacity sand mills: "When the cylinder gets larger, the materials inside cannot be ground evenly." This is similar to cooking with a large pot - the heat distribution is likely to be uneven.
👍Pengyi Intelligent has already solved the problem of flow field distribution when launching the 1000L ultra-large capacity model. The equipment is not simply a volume expansion; instead, the rotor structure and the flow lines of the cavity have been redesigned:
1️⃣Homogenization of energy density: Through an optimized turbine rotor, intense vortices are formed within the 1000L huge cavity, ensuring that each zirconia bead is in a high-frequency movement state without dead corners or sedimentation. The retention time distribution curve (RTD) of the material in the cavity is narrower, effectively eliminating the phenomenon of "some materials being over-grounded while others are not ground enough".
2️⃣Ultra-precise particle size distribution: The particle size distribution (PSD) of lithium iron phosphate directly determines the compaction density of the electrode sheet. The 1000L direct-drive sand mill of Pengyi, with uniform energy distribution, produces LFP slurry with a very narrow normal distribution of particle sizes, significantly reducing the proportion of ultra-large particles and ultra-fine dust, laying a perfect physical foundation for subsequent carbon coating and battery production.

Making the bead mill properly is just the first step. The production of lithium iron phosphate is a complex systematic project. From ingredient mixing to pre-mixing, grinding, screening... If any step goes wrong, the final product will have problems. Pengyi Intelligent not only provides a single 1000L direct-drive bead mill, but also offers an integrated solution for the cathode material production line that integrates software and hardware:

1️⃣Pre-processing deep wetting: The efficient pre-mixing system ensures that the lithium iron phosphate raw materials are fully wetted and dispersed before entering the sand mill, opening up the agglomerates in advance, significantly reducing the load on the bead mill and improving the throughput of the entire line.
2️⃣Multi-stage series process package: Tailored to the characteristics of different manufacturers' LFP raw materials, a series process of coarse grinding and fine grinding is customized. Through the combination of different zirconium bead diameters, the target particle size is achieved in the shortest time and with the lowest energy consumption.
3️⃣DCS intelligent control brain: The entire line adopts a distributed control system. Key parameters such as slurry flow rate, temperature, liquid level, and pressure are real-time closed-loop controlled. The operator only needs to set the target parameters, and the system automatically optimizes and maintains a stable operation, transforming the stability between batches from "depending on the master's experience" to "guaranteed by the system".

As the lithium iron phosphate industry shifts from competing on production capacity and scale to competing on technological depth, each technological iteration of production equipment is reshaping the value anchors of cost and quality for enterprises.
Pengyi Intelligent's 1000L direct-drive bead mill and LFP cathode material integrated line solution directly addresses the pain points of nanometer-scale grinding. With direct-drive's high efficiency, large-capacity homogenization, and full-process purity control, it has created a "military-grade weapon" for cathode material enterprises to break through into the high-end market.
Under the main theme of cost reduction and efficiency improvement in the industry, choosing a partner with a genuine understanding of processes and the ability to implement them might be the key to standing out in the next cycle.
