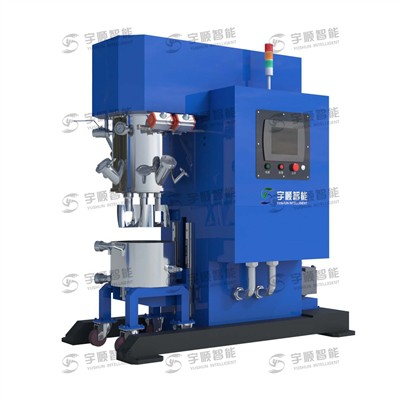

Is it difficult to mix high-viscosity dental materials? Yushun Intelligent Vertical Kneader offers a perfect solution!

In the current era of rapid development in the oral healthcare industry, dental materials are evolving towards higher performance, greater stability, and higher precision. Core production materials such as dental resins, silicone rubber impression materials, dental cements, and orthodontic adhesives typically exhibit strict characteristics such as high viscosity, thermal sensitivity, high purity, and low residue. Traditional mixing equipment often encounters problems like uneven mixing, inaccurate temperature control, residual air bubbles, and easy contamination when dealing with these special materials, which not only affect the stability of product quality but also restrict production efficiency and compliance.

Yushun Intelligent has delved into the pain points of the dental industry, focusing on the core demand for high-viscosity dental material mixing, and has launched a customized vertical kneading machine solution. With innovative technology, it breaks through the traditional mixing barriers, providing "zero-defect, high-efficiency, and fully compliant" mixing guarantees for dental material manufacturers, helping enterprises achieve product upgrades and capacity expansions.

1. High viscosity leads to uneven mixing

The blade movement trajectories of traditional mixing equipment (such as ordinary mixers and dispersers) are monotonous, and they can only achieve local material turnover, unable to cover the entire area of the reactor. The bottom, inner wall, and root of the blades of the reactor are prone to form accumulation dead zones, resulting in phenomena such as "material climbing", "layering", and "aggregation".

2. The heat sensitivity is remarkable. Deviation in temperature control can easily lead to degradation of the materials

The majority of dental materials are highly sensitive to temperature, especially dental resins and orthodontic adhesives. Any temperature fluctuation exceeding ±2℃ may cause premature polymerization of the resin, abnormal vulcanization of rubber, and damage to the microstructure of the materials, resulting in the failure of product performance. The traditional equipment's temperature control system has insufficient accuracy and mostly adopts a single heating method, where heat tends to accumulate in certain areas of the container, making it impossible to achieve uniform temperature control. This not only leads to material degradation and waste, but also causes significant differences in product performance between batches, failing to meet the stability requirements for large-scale production of dental materials.

3. The removal of bubbles is difficult, which seriously affects the safety and performance of the product

In a high-viscosity system, the viscoelastic structure of the materials will closely envelop the micro-bubbles. The shear force generated by traditional stirring methods is insufficient to break the bond between the bubbles and the materials, making it impossible to effectively remove the bubbles. The remaining micro-bubbles will seriously affect the quality of dental materials: in dental resins, bubbles will cause a decrease in material transparency, a reduction in strength, and an increased likelihood of cracks; in silicone rubber impression materials, bubbles will form pores, resulting in insufficient impression accuracy and affecting the accuracy of restoration fabrication; in dental cement, bubbles will reduce the bonding strength, increase the risk of restoration detachment, and directly threaten medical safety.

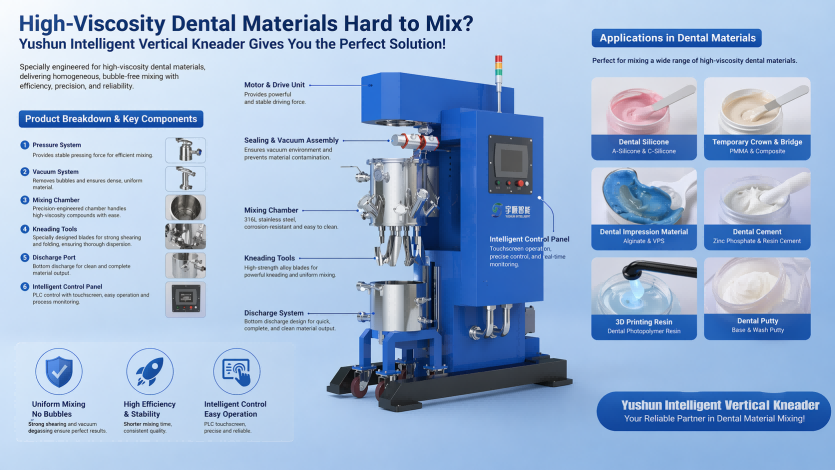

1. Planetary mixing structure, achieving uniform mixing without dead corners

With the exclusive dual-blade planetary rotating design, the stirring blades rotate around the common axis of the reactor body while also rotating synchronously on their own, forming a combined motion trajectory of "rotation + rotation". The blades are precisely matched with the reactor wall and with each other (the gap is ≤ 0.1mm). The materials are repeatedly sheared, folded and stretched within the reactor body, covering every corner of the reactor body comprehensively and completely eliminating any dead zones in the mixing process.

2. High-precision temperature control system, precisely safeguarding the thermal stability of materials

The equipment is equipped with a jacketed reactor body design, and is linked with a high-precision PID intelligent temperature control system. The temperature control accuracy can reach ±1℃. According to the characteristics of different dental materials (such as the optimal mixing temperature of dental resins, the curing temperature of silicone rubber), the temperature control curve can be precisely set to achieve smooth switching between heating and cooling. At the same time, it supports various heating methods such as heat transfer oil, steam, and electric heating, and can flexibly adapt to the temperature control requirements of different materials. The entire process avoids local overheating and material degradation, ensuring that the material performance is not damaged.

3. High-efficiency vacuum degassing system, achieving ultimate purity of materials

The integrated high-sealing vacuum system can achieve a vacuum degree of -0.095 MPa. During the mixing process, degassing treatment is carried out simultaneously to quickly eliminate micro-bubbles in the materials, reducing the residual rate of bubbles to below 0.1%. After treatment, the dental materials have a dense and pore-free appearance. The key indicators such as the light transmittance of dental resins, the tear strength of silicone rubber, and the bonding strength of dental cements have been significantly improved, fully meeting the high-quality requirements of medical-grade products. This avoids the medical safety risks caused by bubbles from the source.

The mixing of high-viscosity dental materials is difficult and has never been an insurmountable technical bottleneck; rather, it is due to the lack of a precisely tailored solution. As the dental healthcare industry continues to upgrade, the requirements for the mixing process of dental materials will become increasingly stringent. Traditional equipment is no longer able to meet the demands of the industry's development.
Yushun Intelligent focuses on technological innovation as its core and customer needs as its orientation. It has been deeply engaged in the field of dental material mixing. By leveraging the four core technologies of planetary mixing, precise temperature control, vacuum degassing, and fully sealed cleanliness, along with a full-dimensional customized solution, it has completely broken through the traditional mixing barriers and provided efficient, stable, and compliant mixing guarantees for dental material manufacturers.
Choosing Yushun Intelligent's Vertical Kneader is choosing medical-grade quality, high-efficiency production, and full compliance guarantees. It helps dental material manufacturers break through technical bottlenecks, enhance product competitiveness, seize development opportunities in the dental healthcare sector, and inject strong impetus into the high-quality development of the dental healthcare industry!
